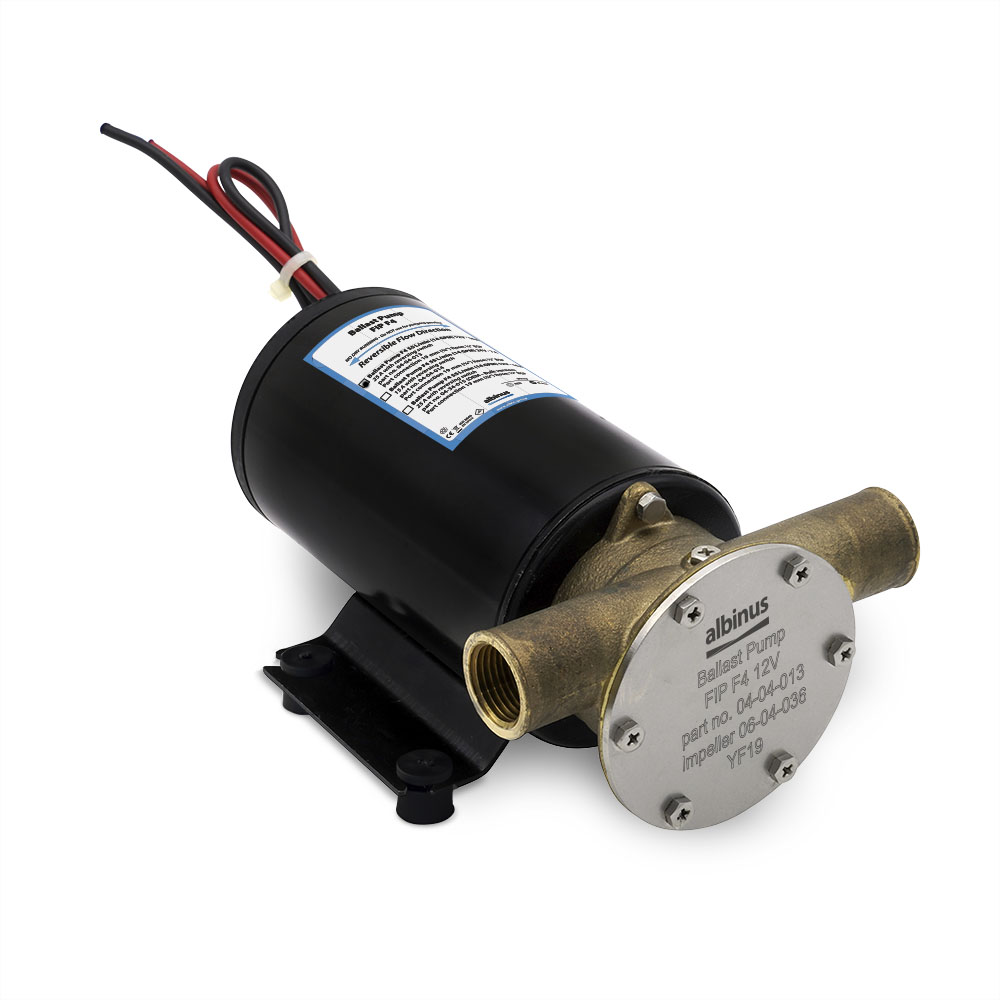

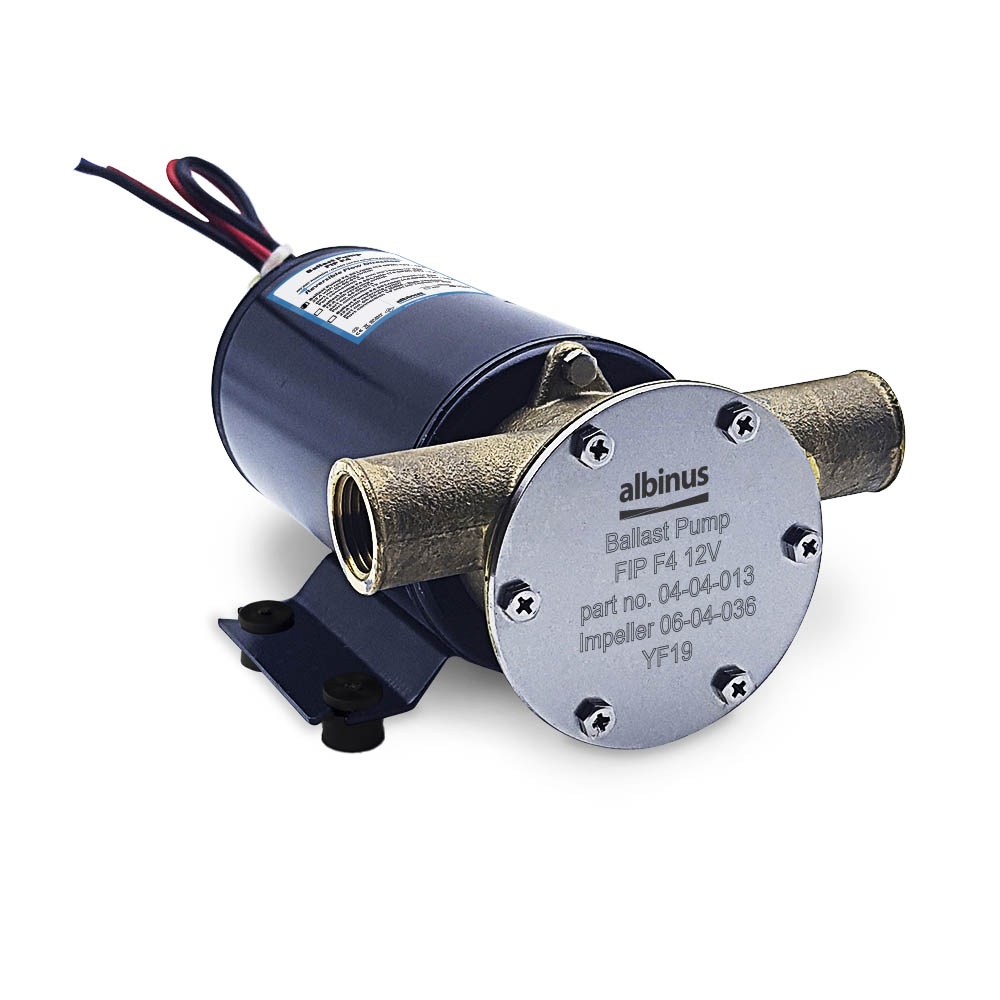

Ballast Pump FIP F4 12V

DC 12V F4 size ballast pump with capacity 55 L/min (14.25 GMP). Used for ballast pumping of water between tanks. Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller and sea water resistant shaft seal. Port connections 3/4"(19mm) hose connection, 1/2" threaded BSP, self priming up to 3m vertical lift. Reversible flow direction, 25A fuse reversing, 16A normal duty, protected against ignition of surrounding flammable gases ISO 8846. Replacement Premium Ballast Impeller in MC19 compound PN 06-04-036.

SKU: 04-04-013 Category:

Manual for Ballast Pump FIP 4_Albinus_EN-v1.pdf

Manual for Ballast Pump FIP 4_Albinus_Deutsch-v1.pdf

04-04-013 BALLAST PUMP ASSY_3D.pdf

04-04-013 BALLAST PUMP ASSY_3D LAYOUT.stp
