BL130CM 12V BID

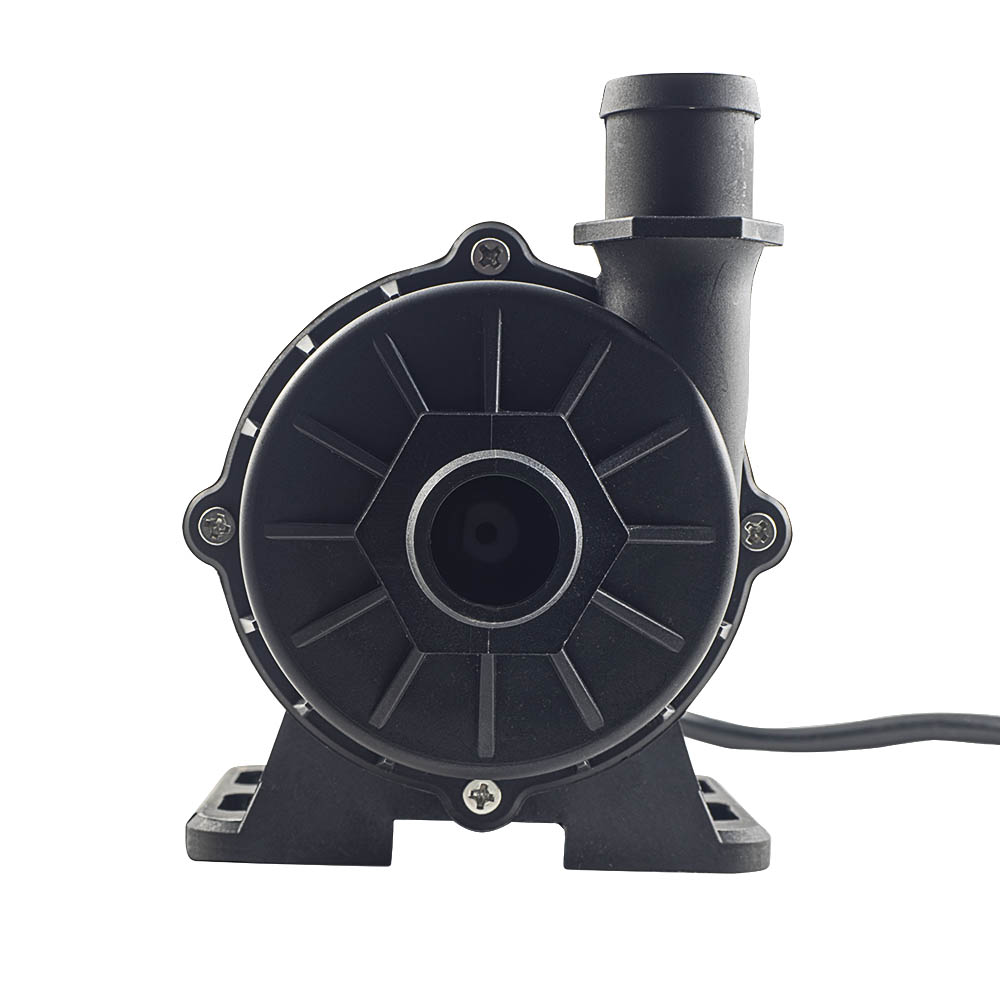

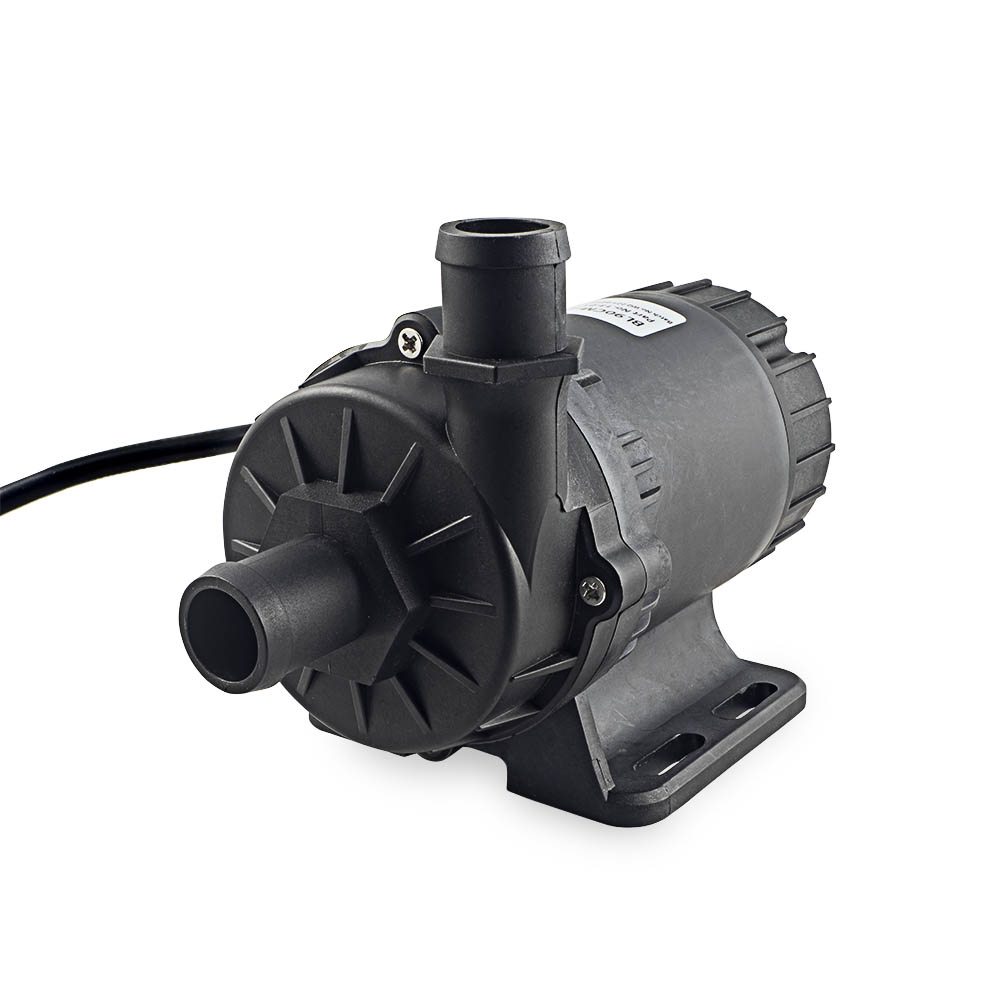

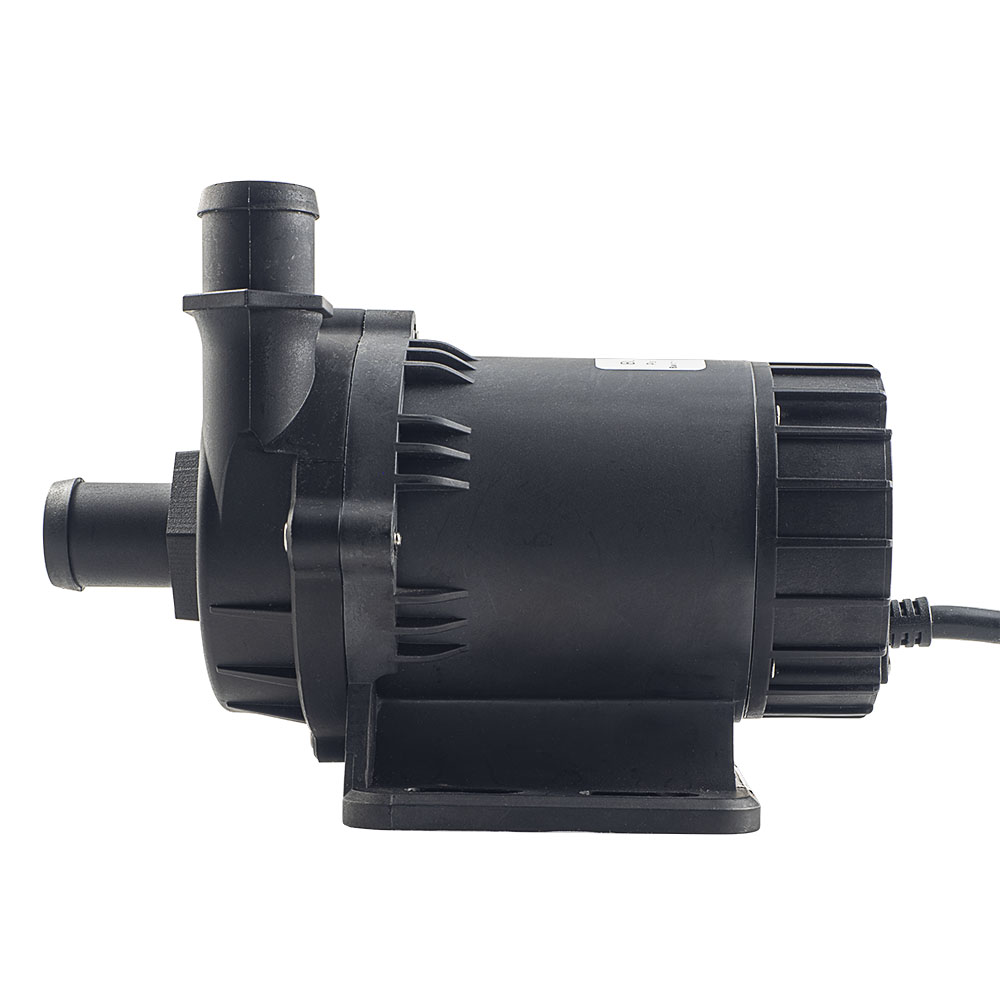

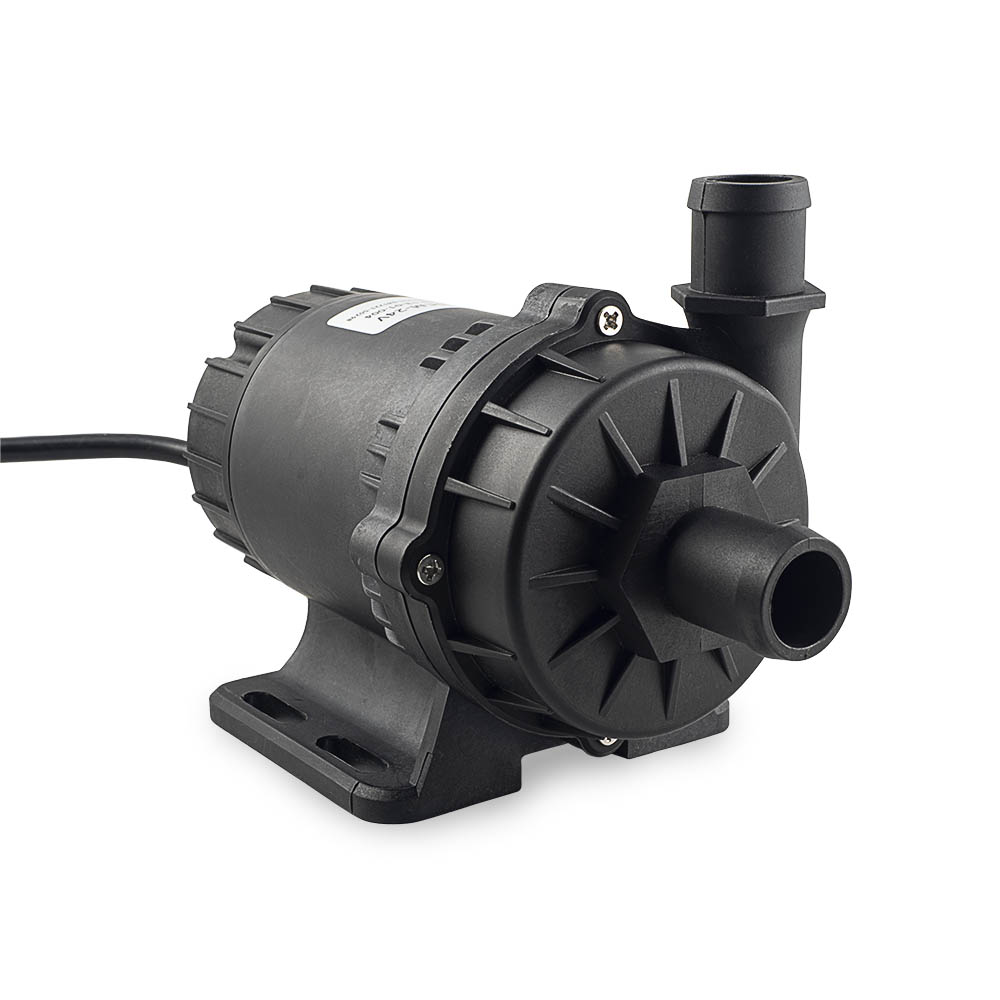

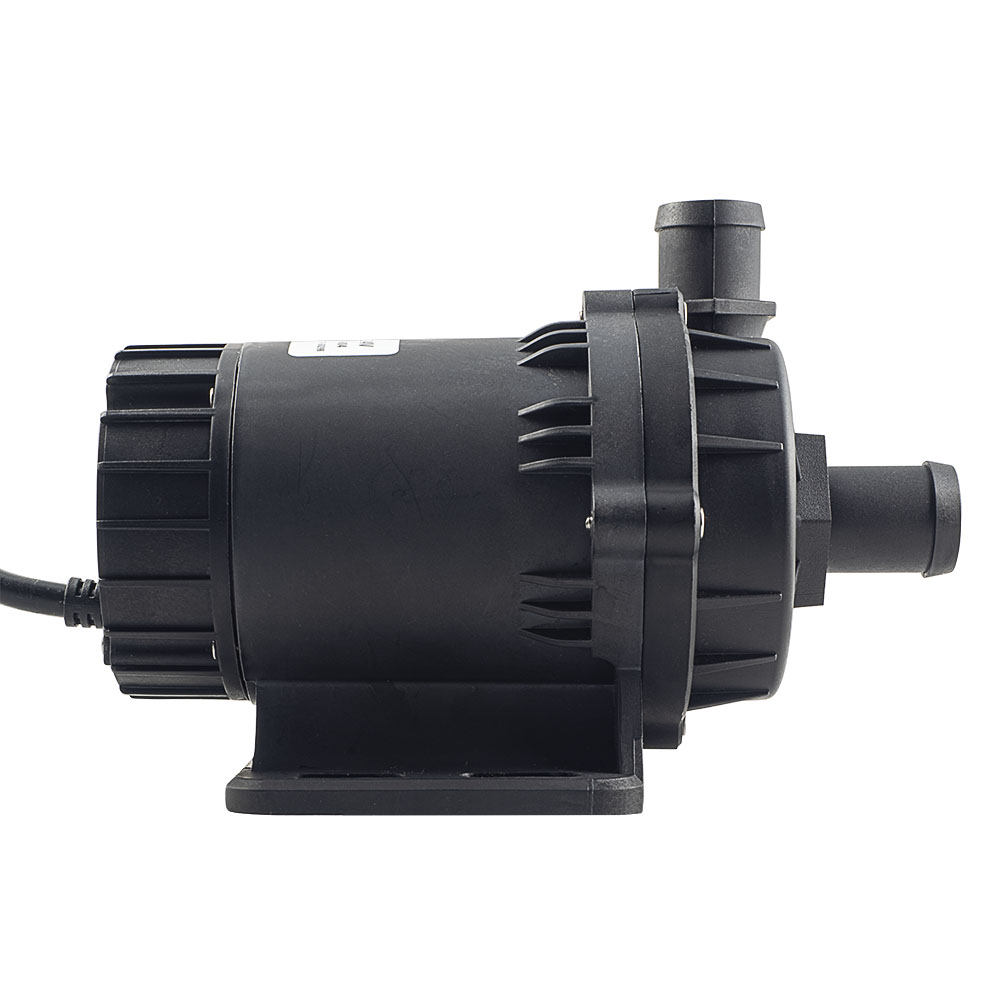

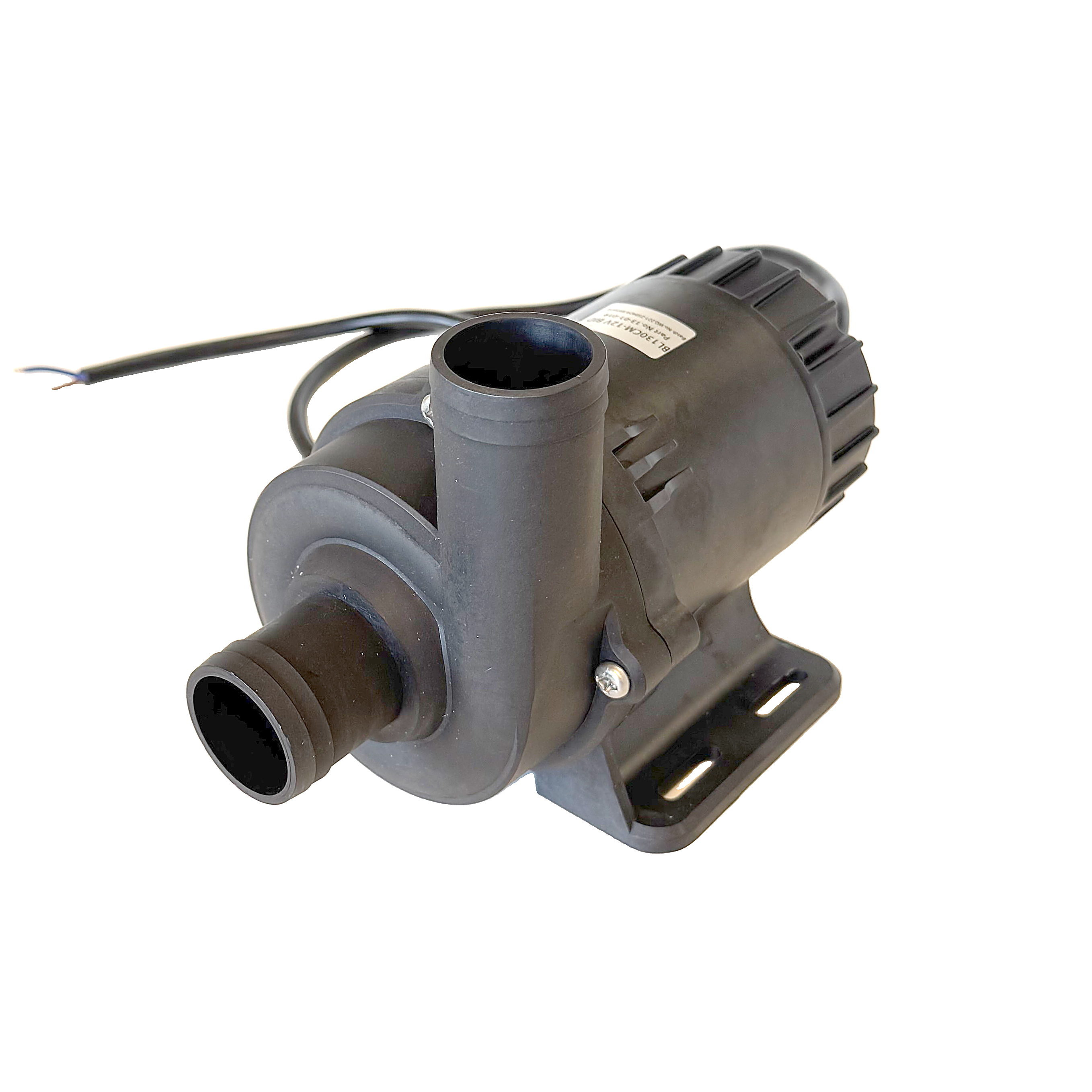

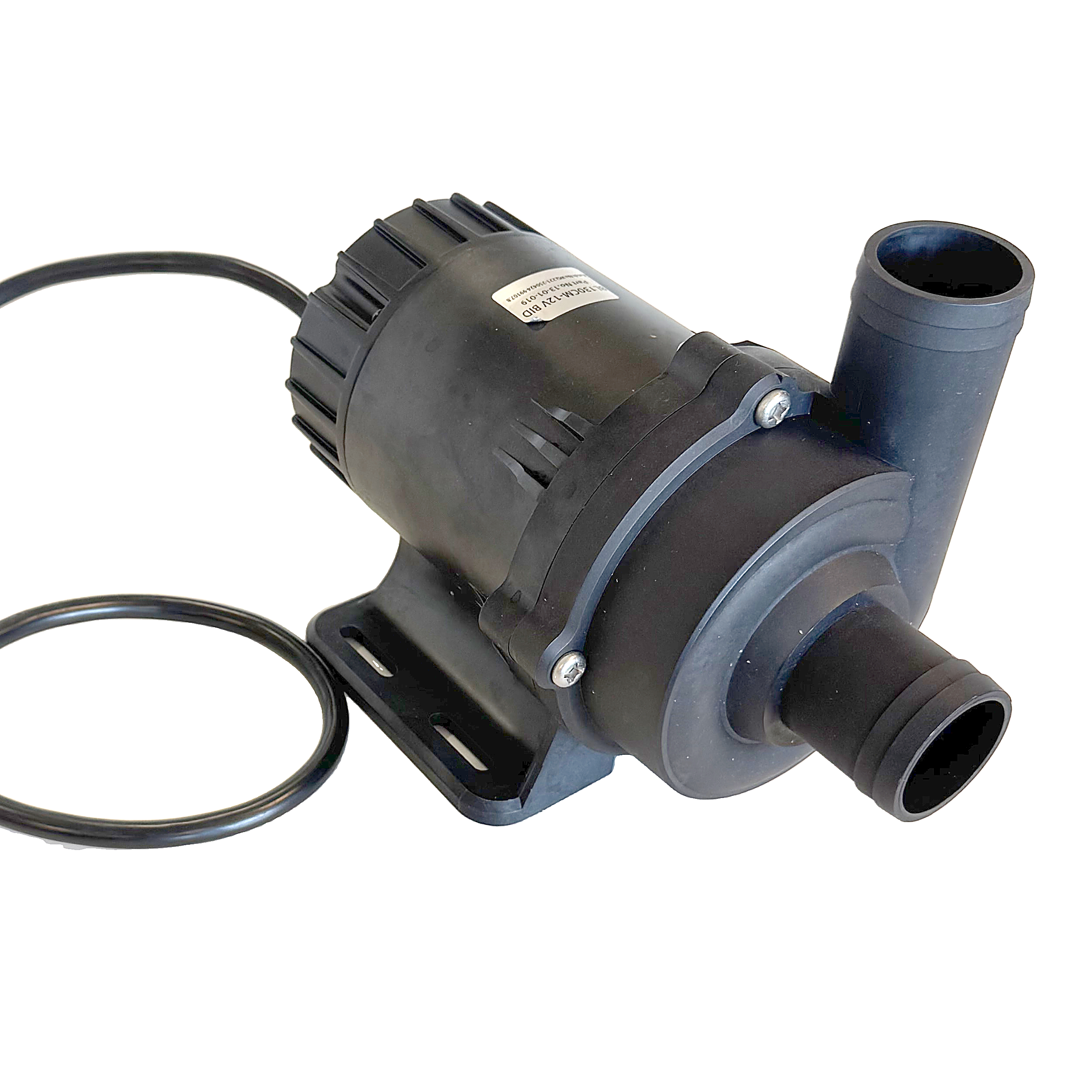

BL130CM-12V DC-driven circulation pump with brushless motor, 12V, in BID configuration with a built-in driver. Circulates water/glycol mixture in heating or cooling systems on boats, buses, motorhomes and other commercial vehicles. The highest-capacity model in the series, high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve, completely water proof (IP68).

• Port Size 38 mm (1 1/2")
• Capacity at 0.1 bar: 183 l/min, at 0.25 bar: 154 l/min
• Max. load current 7.0 A, Max Power consumption 100 W
• Weight 3.2 kg
• Motor: Brushless magnetic isolated design with built-in driver (BID)
• Continuous Duty, Life span ≥30,000 hours
• Materials: ABS, PES, SPS, PPS, PA66+30%GF (Optional)
• Motor IP Classification IP68, Noise class 35 dB
• Max. Liquid Temp.: Continuous Duty +60°C, Intermittent +80°C
