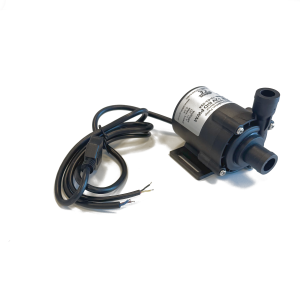

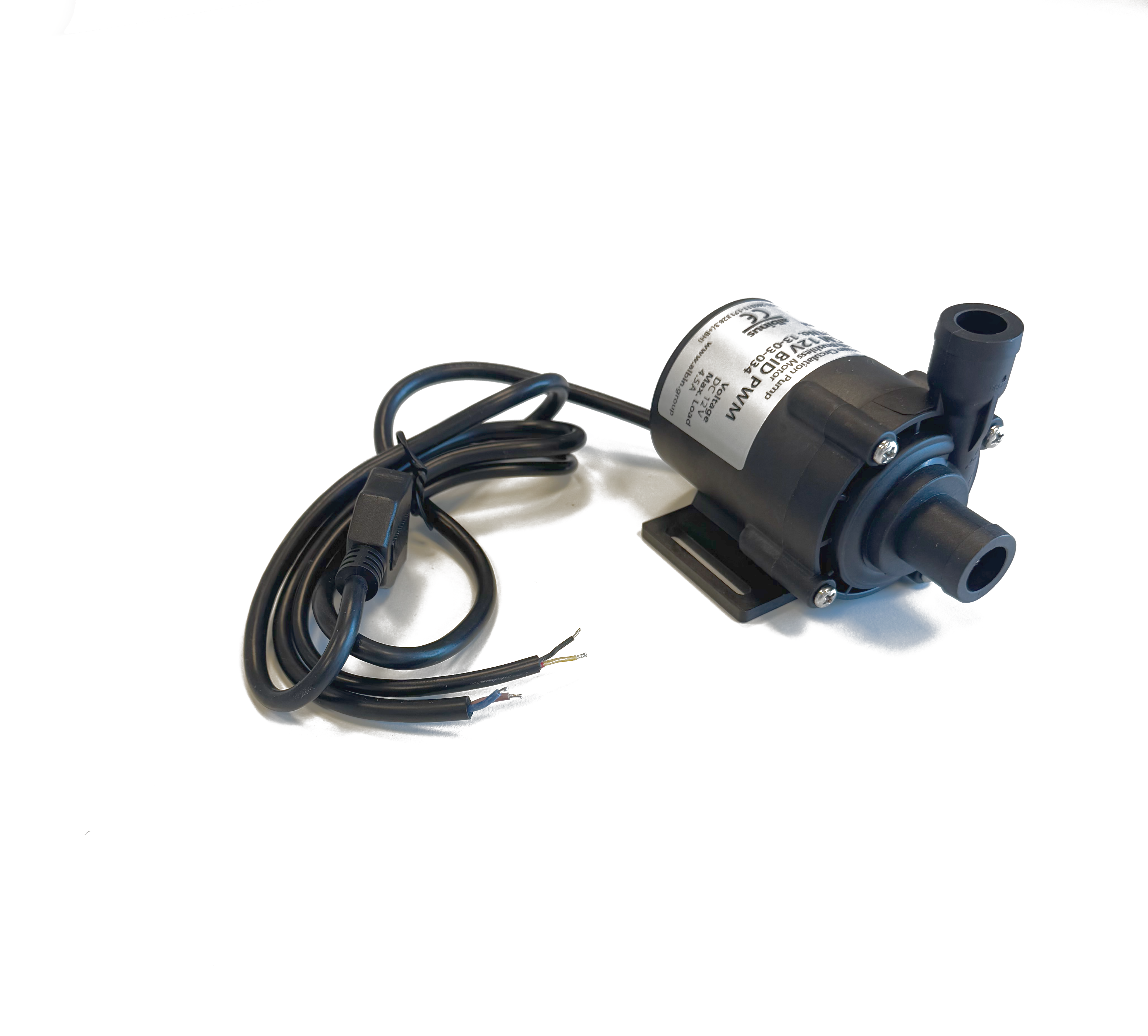

BL30CM 12V BID PWM

DC-driven circulation pump with brushless motor, 12V, with a built-in driver (magnetic isolation) and PWM speed control. Rated for continuous operation, can be used both submerged and on land (not self-priming), and is suitable for water, oil or normal acid/alkaline liquids. Powered via solar panel, battery, adapter or other power source.

• Dimensions: 102 × 78 × 80 mm, Weight: 0.52 kg
• Inlet/outlet diameter: Ø20 mm
• Pump housing: PPS +30% glass fiber (optional)
• Working voltage: 8–16V DC
• Current: 3.5 A at closed outlet / 4.5 A at open pumping (±10%)
• Power consumption: 42 W at closed outlet / 54 W at open pumping (±10%)
• Max flow rate: 2000 L/h (±10%)
• Max static head: 12 m (±7%)
• Speed control: PWM signal, 50–800 Hz / 5V
• Speed feedback (optional): pulse signal, actual speed = 30 × pulse frequency
• Protection functions: dry-run, stall and stuck-rotor protection (optional depending on customization)
• IP Classification IP68 (pump wet-end suitable for submersible installation — note: built-in driver is intended for dry/external mounting, an external driver is required for submerged installation)
• Life span: more than 30,000 hours
• Noise class: ≤35 dB
• Operating temperature: -30°C to +100°C
