BL30CM 24V

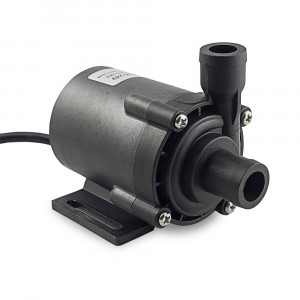

BL30CM-24V DC driven Circulation Pumps with Brush-less Motor 24V*
Circulation pump for circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes and commercial vehicles. Small size with high efficiency, maintenance-free, Ceramic Shaft and Carbon fiber sleeve, Completely water proof (IP68), Brush-less DC control, long service life.

• Dimensions: 102 × 78 × 80 mm, Weight: 0.52 kg
• Inlet/outlet diameter: Ø20 mm
• Pump housing: PPS +30% glass fiber (optional)
• Working voltage: 10–28V DC
• Current: 2.7 A at closed outlet / 3.3 A at open pumping (±10%)
• Power consumption: 65 W at closed outlet / 80 W at open pumping (±10%)
• Max flow rate: 2400 L/h (±10%)
• Max static head: 16 m (±7%)
• Protection functions: dry-run, stall and stuck-rotor protection (optional depending on customization)
• IP Classification IP68 (suitable for submersible installation)
• Life span: more than 30,000 hours
• Noise class: ≤35 dB
• Max. Liquid Temp. Continuous Duty + 80°C, Intermittent + 100°C

Interchangeable with Johnson Pump 10-24504-04
