BL10CM 12V

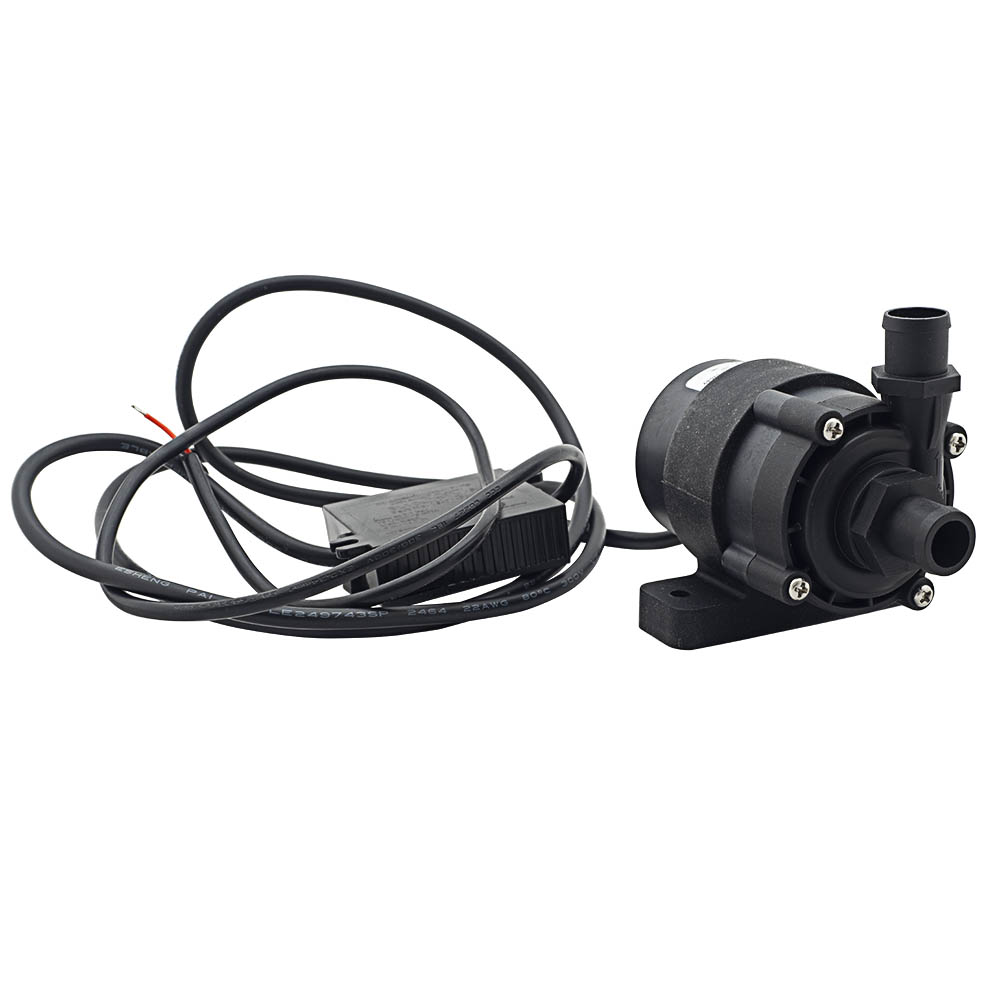

BL10CM-12V DC driven Circulation Pump with Brush-less Motor 12V.
Circulation pump for circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes and commercial vehicles. Small size with high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve. Completely water proof (IP68) brushless DC control, long service life.

Port Size 14mm (5/8”)
Capacity: at 0,1 bar 19 l/min, at 0,25 bar 16 l/min.
Max. load 2 A.
Power consumption 80 W.
Weight 0,2 kg
Motor brush-less magnetic isolated design
For continuous duty
Life span 20 000 hours
Materials of pump housing ABS, PES/SPS7PA66
Motor IP classification IP 68
Noise class 35dB
Max. liquid temp continuous duty +80 deg. C, Intermittent +100 deg. C

Interchangeable with Johnson Pump 10-24501-03

SKU: 13-01-005 Category:
