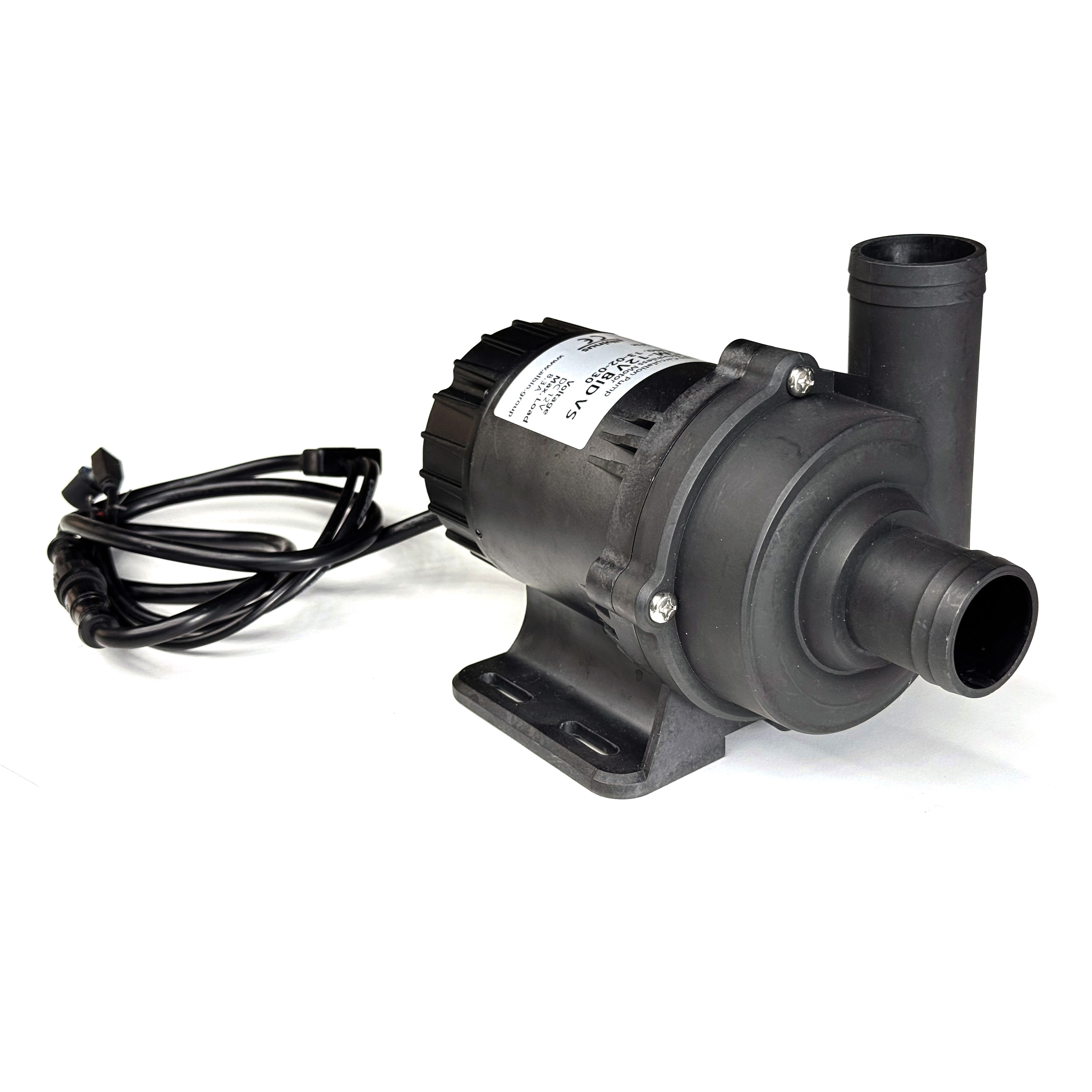

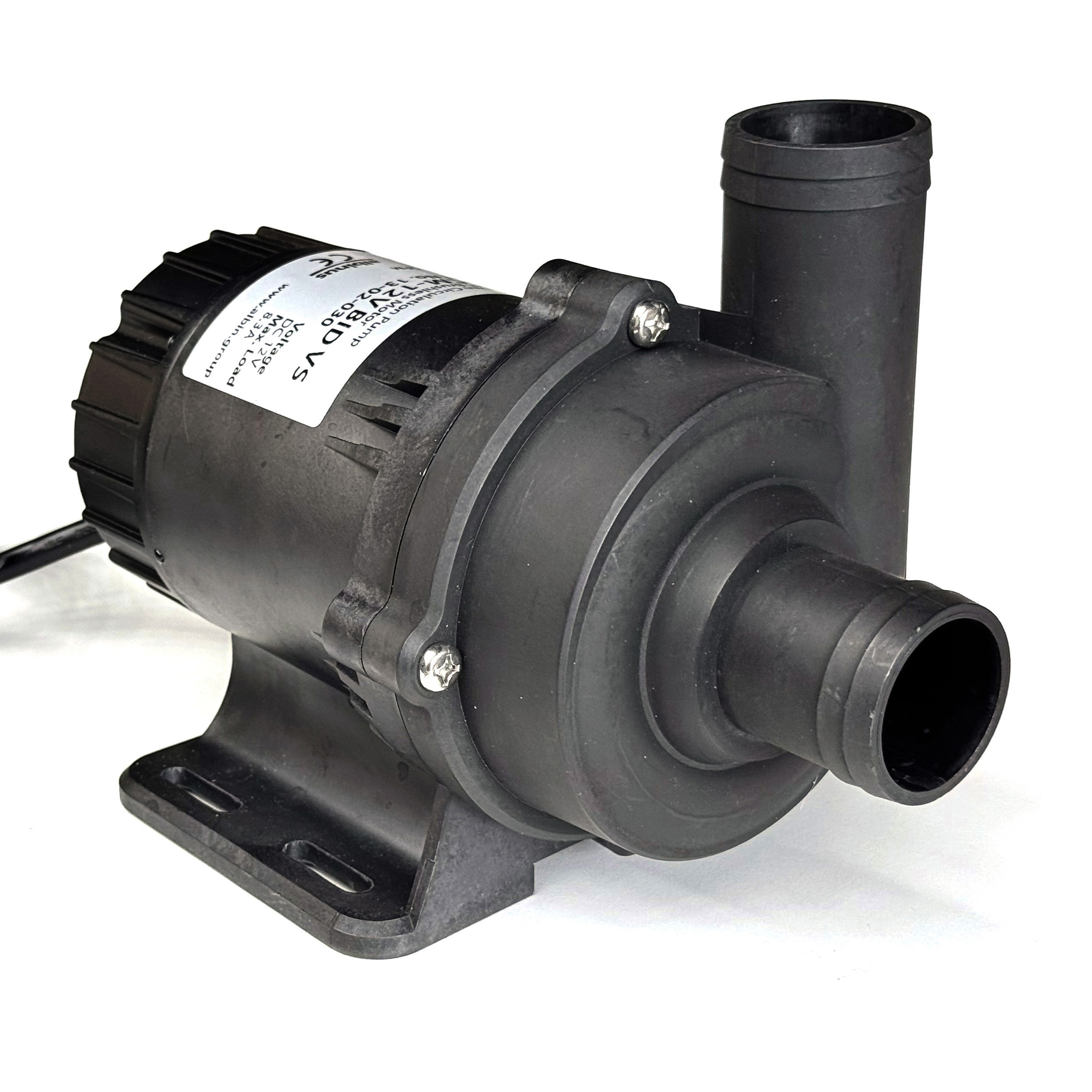

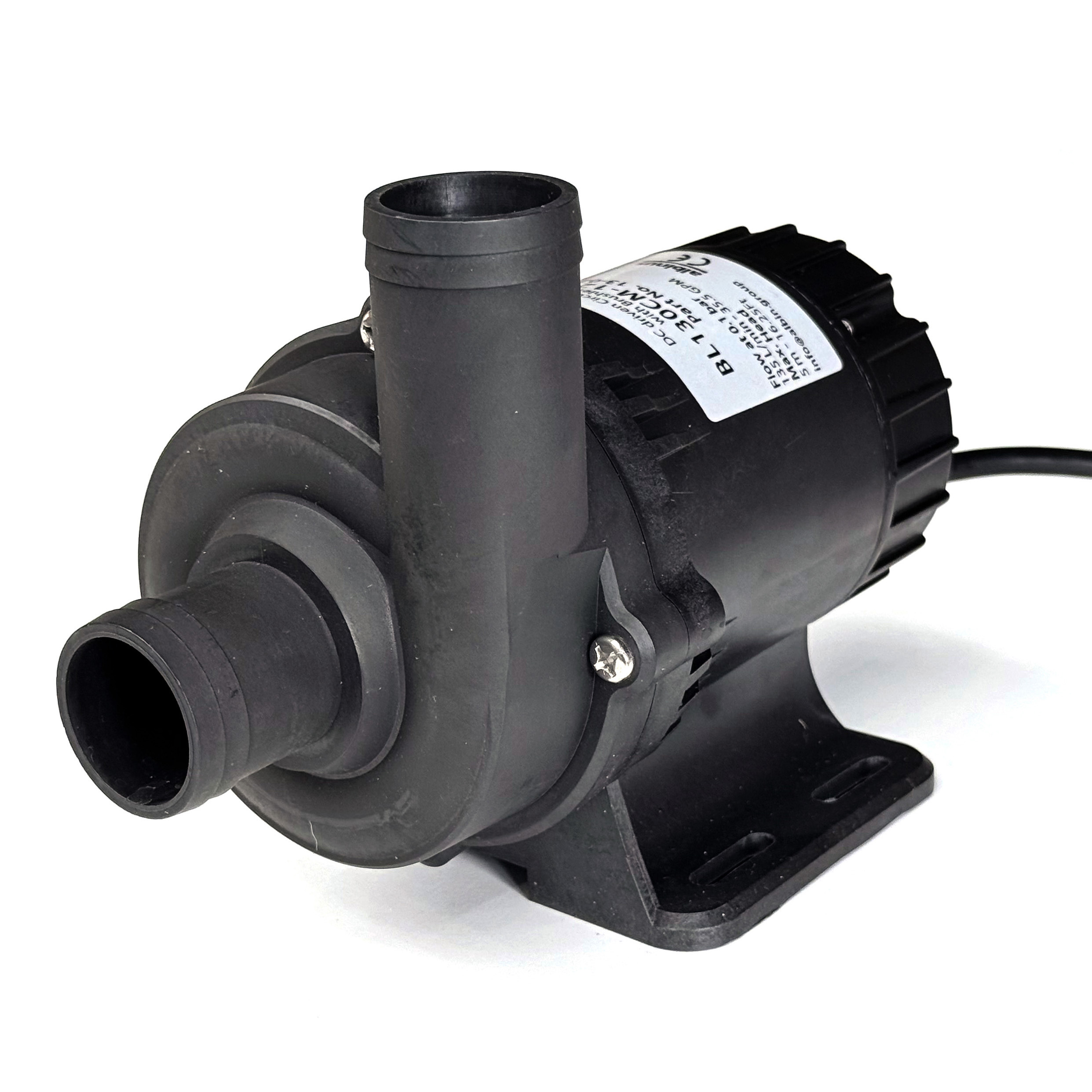

BL130CM 24V BID VS

BL130CM-24V DC-driven circulation pump with brushless motor, 24V, in BID VS configuration with a built-in, steplessly variable-speed drive. Circulates water/glycol mixture in heating or cooling systems on boats, buses, motorhomes and other commercial vehicles. The highest-capacity model in the series, high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve, completely water proof (IP68).

• Port Size 38 mm (1 1/2")
• Capacity at 0.1 bar: 210 l/min, at 0.25 bar: 185 l/min
• Max. load current 7.0 A, Max Power consumption 200 W
• Weight 3.2 kg
• Motor: Brushless magnetic isolated design with built-in variable-speed drive (BID VS)
• Continuous Duty, Life span ≥30,000 hours
• Materials: ABS, PES, SPS, PPS, PA66+30%GF (Optional)
• Motor IP Classification IP68, Noise class 35 dB
• Max. Liquid Temp.: Continuous Duty +60°C, Intermittent +80°C
