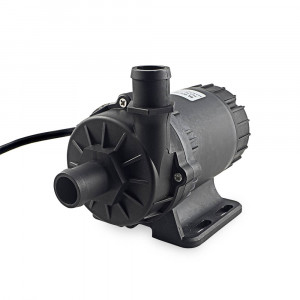

BL90CM 12V

BL90CM-12V DC driven Circulation Pumps with Brush-less Motor 12V. Circulation pump for circulation of water/antifreeze in heating or cooling systems on boats, buses, motor homes and commercial vehicles. Small size with high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve. completely water proof (IP68), brush-less DC control, long service life.

Port Size 20 mm (3/4”)
Capacity: at 0,1 bar 51 l/min, at 0,25 bar 47 l/min.
Max. load 6,6 A.
Power consumption 80 W.
Weight 0,89 kg
Motor Brush-less magnetic isolated design
For continuous duty
Life span 20 000 hours
Materials of pump housing ABS, PES/SPS7PA66
Motor IP classification IP 68
Noise class 35dB
Max. Liquid Temp Continuous duty +80 deg. C, Intermittent +100 deg. C

Interchangeable with Johnson Pump 10-24901-01

SKU: 13-01-003 Category:

DC driven Circulation Pumps Brushless Motor manual_Albinus-v11_2023.pdf

DC driven Circulation Pumps Brushless Motor Spec Sheet_Albinus-v8.pdf
