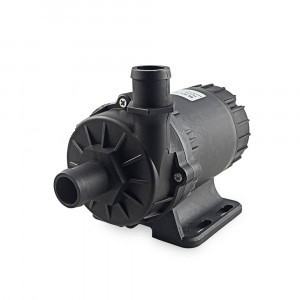

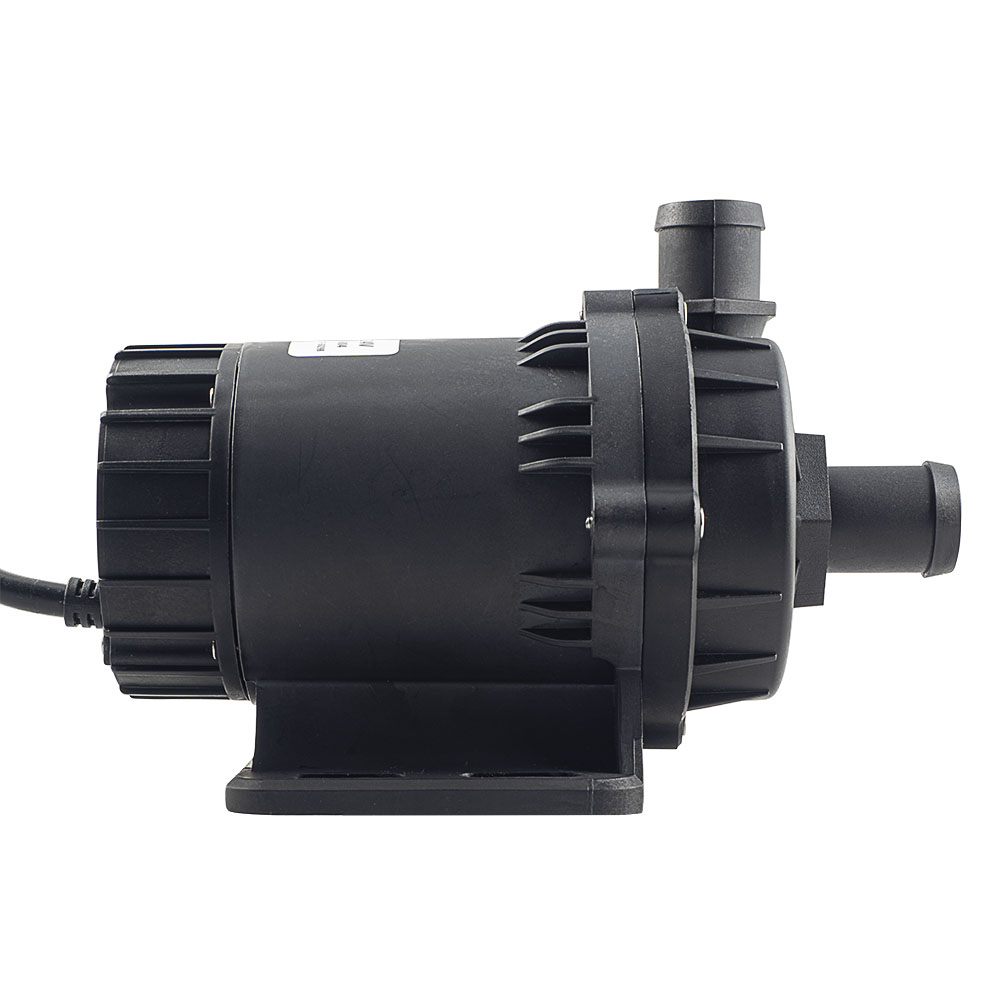

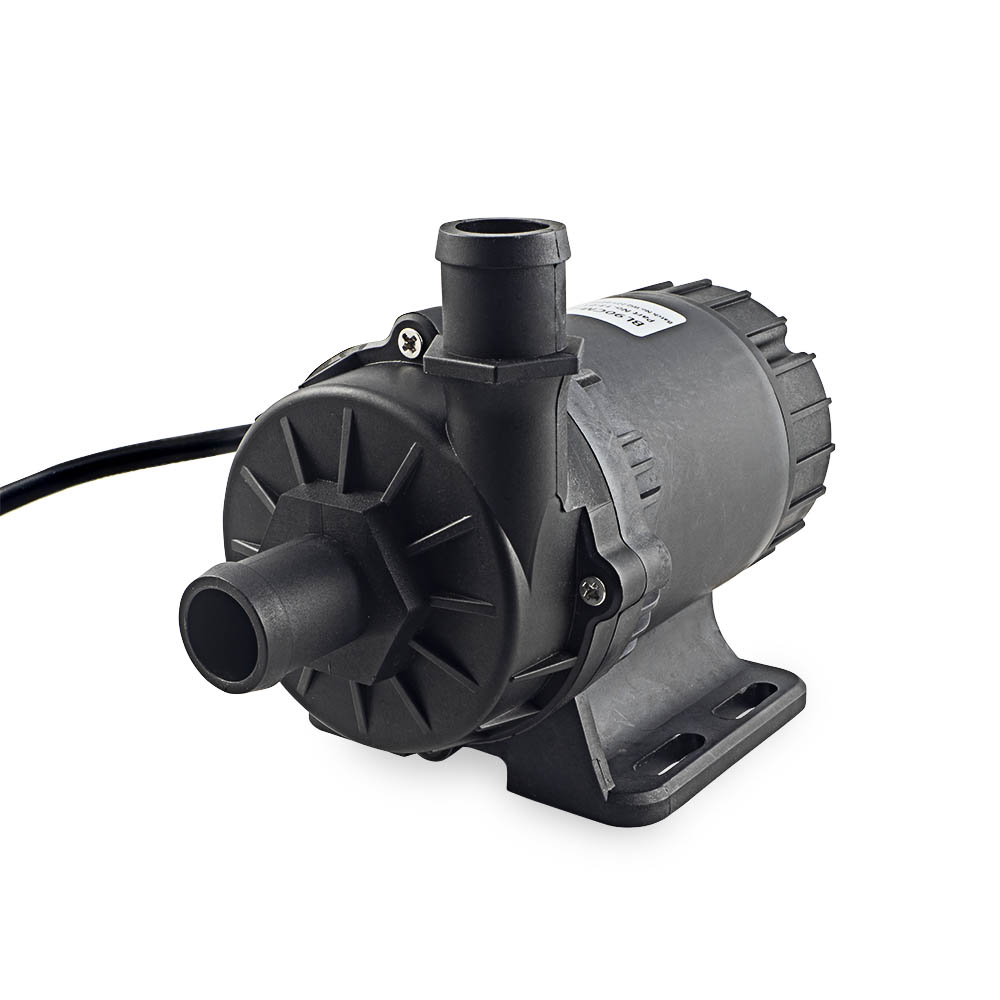

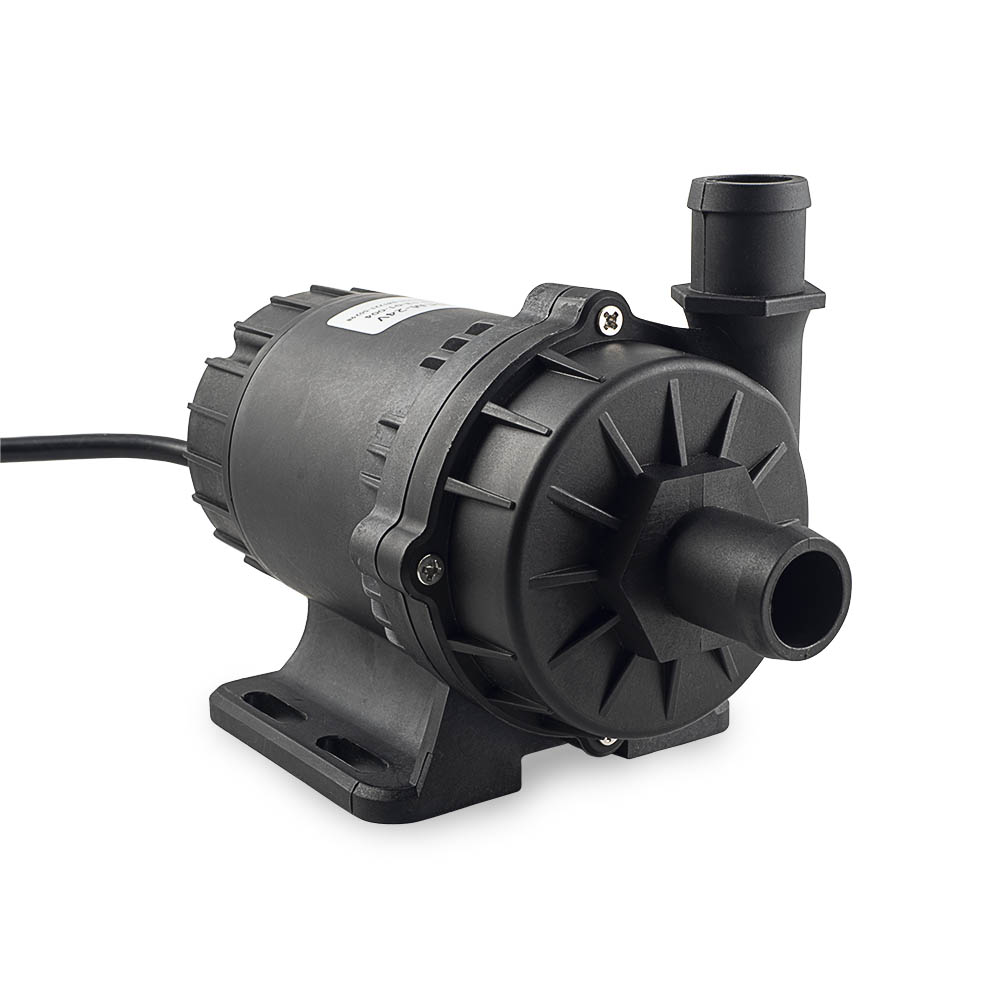

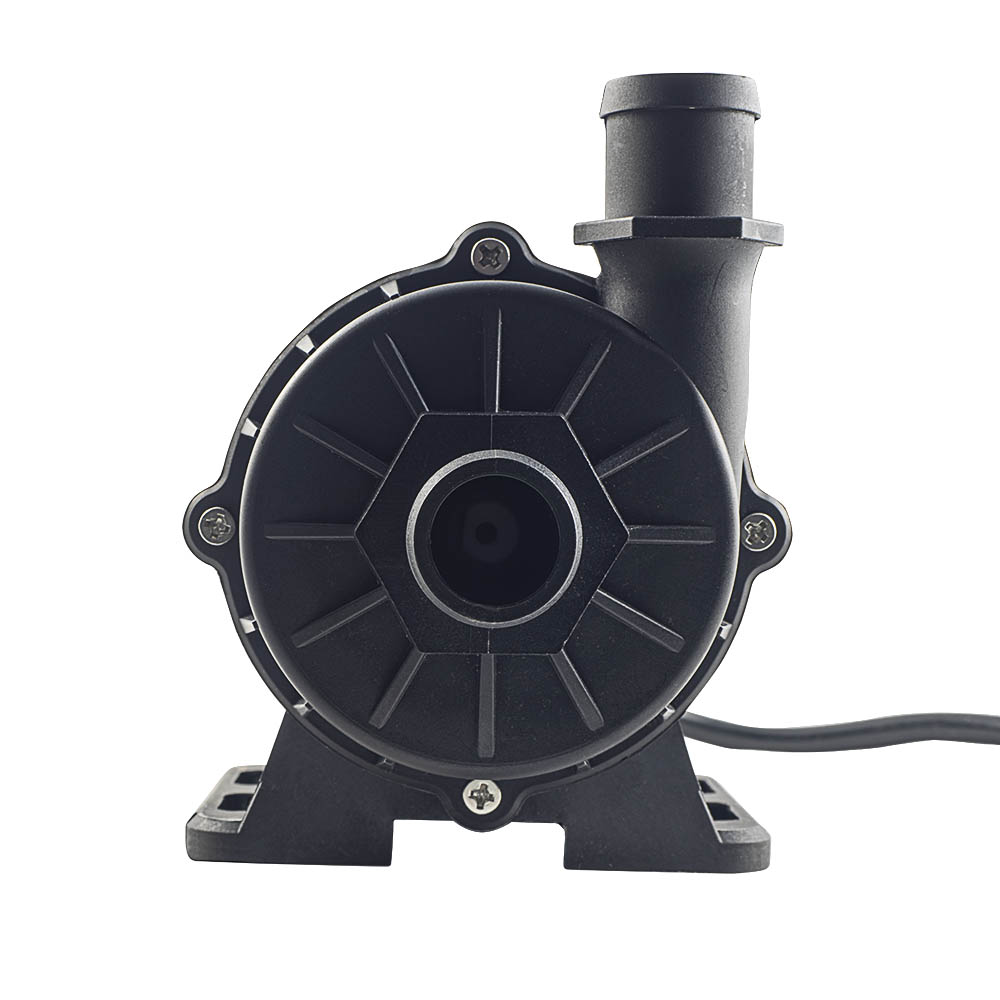

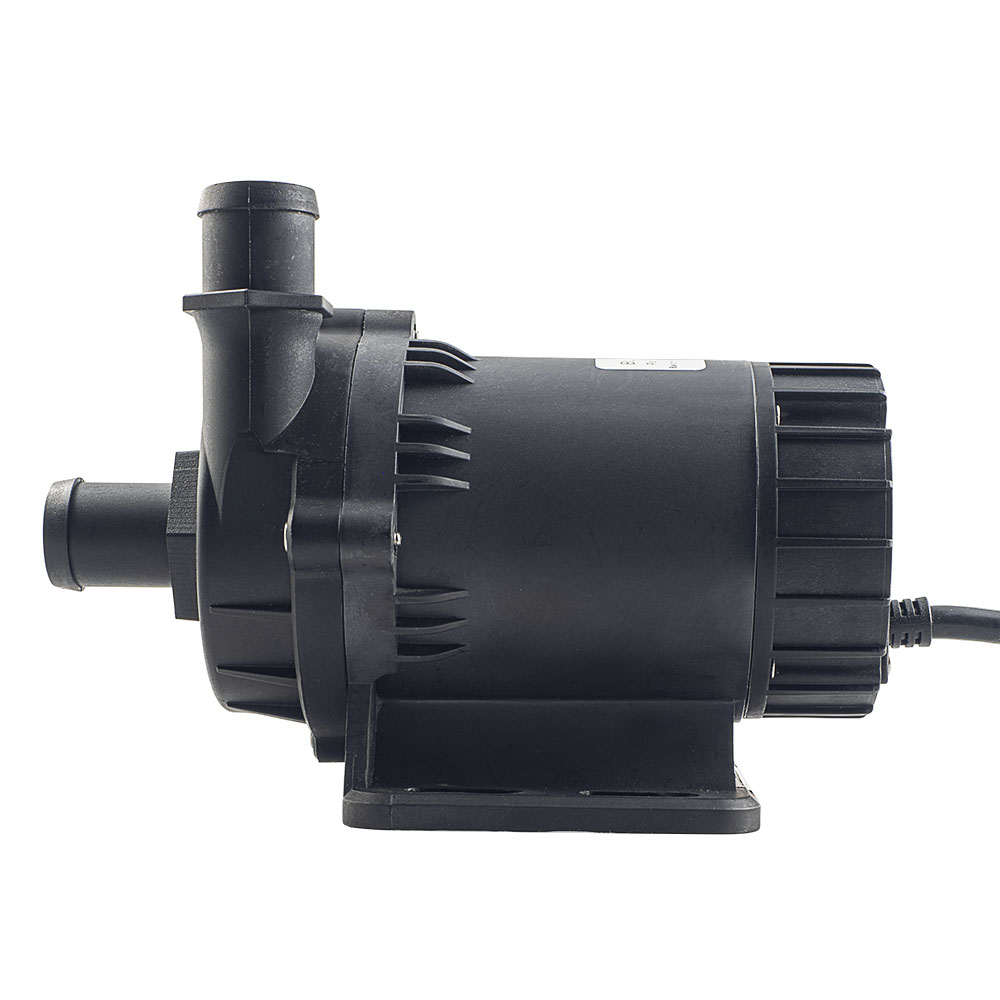

BL90CM 24V BID

BL90CM-24V DC-driven circulation pump with brushless motor, 24V, in BID configuration with a built-in driver. Circulates water/glycol mixture in heating or cooling systems on boats, buses, motorhomes and other commercial vehicles. Small size with high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve, completely water proof (IP68).

• Port Size 20 mm (3/4")
• Capacity at 0.1 bar: 61 l/min, at 0.25 bar: 57 l/min
• Max. load current 3.3 A, Max Power consumption 120 W
• Weight 0.89 kg
• Motor: Brushless magnetic isolated design with built-in driver (BID)
• Continuous Duty, Life span ≥30,000 hours
• Materials: ABS, PES/SPS/PA66
• Motor IP Classification IP68, Noise class 35 dB
• Max. Liquid Temp.: Continuous Duty +60°C, Intermittent +80°C
