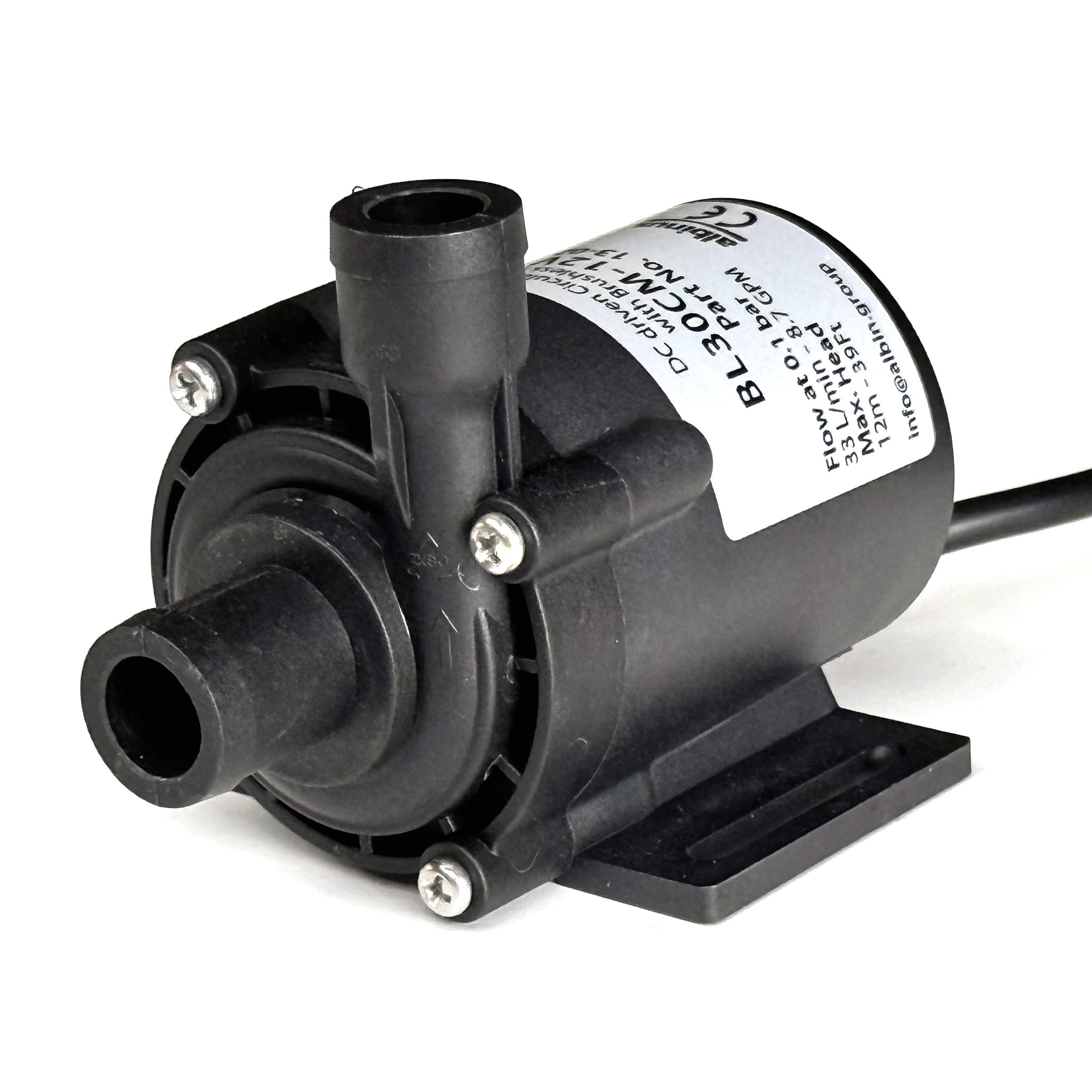

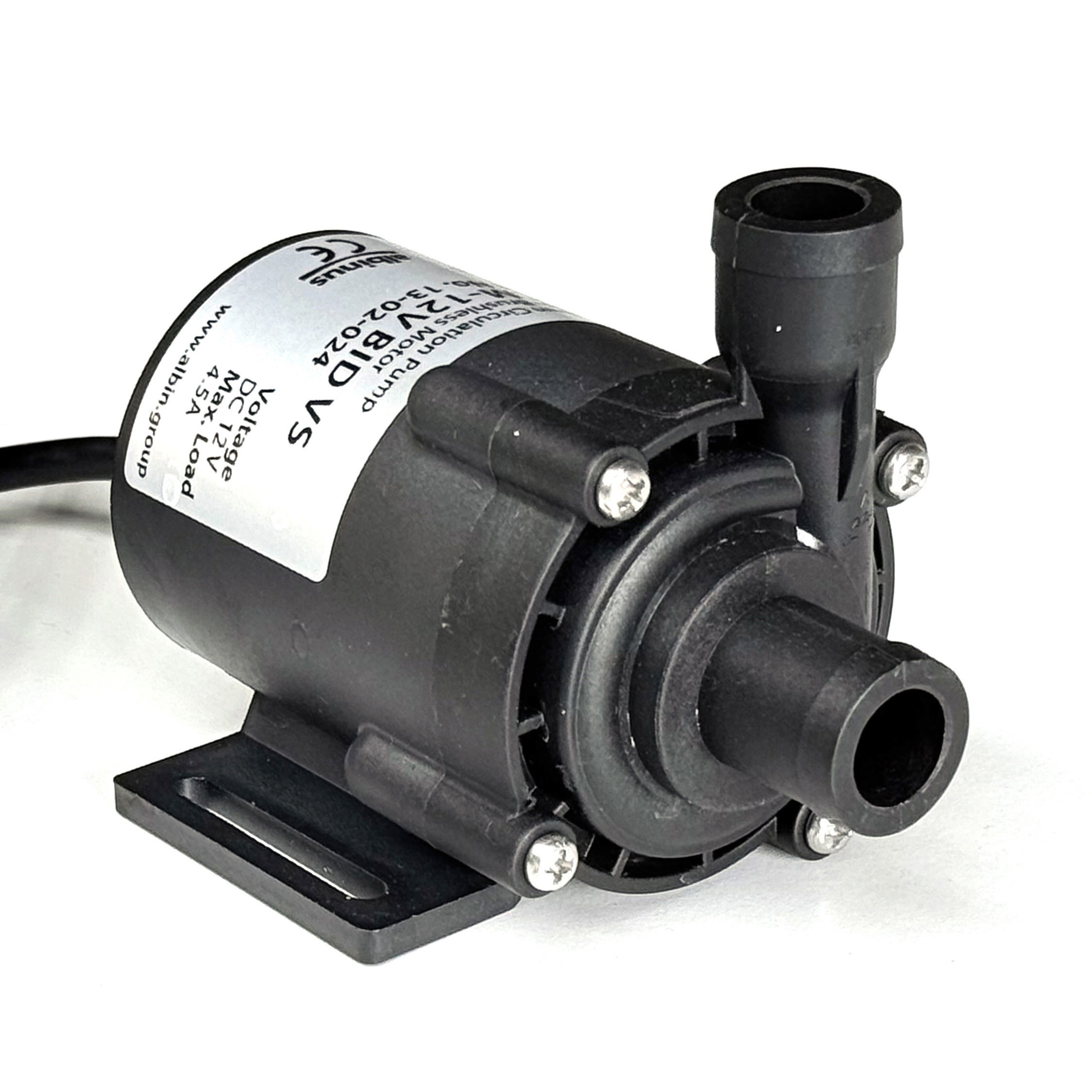

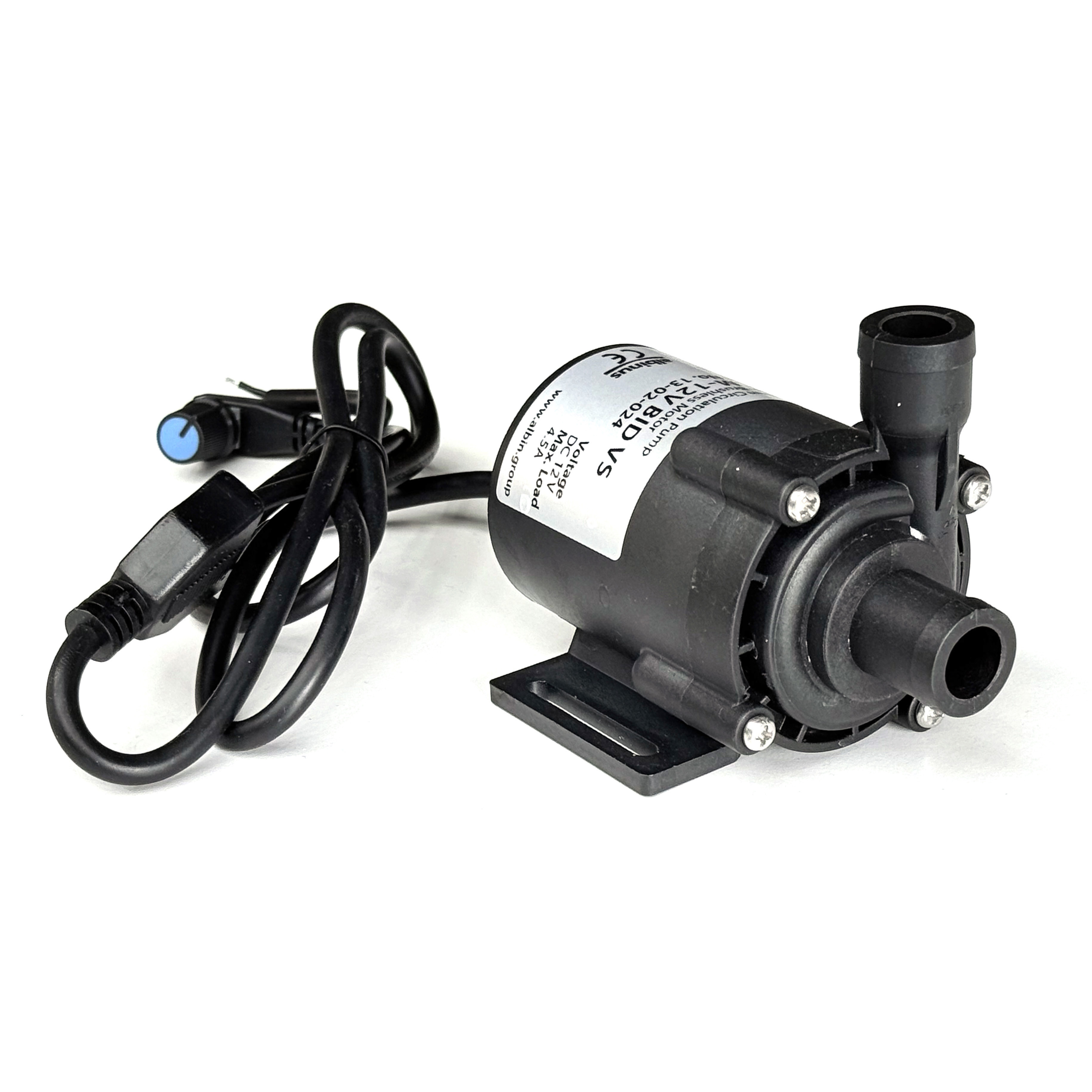

BL30CM 12V BID VS

BL30CM-12V DC-driven circulation pump with brushless motor, 12V, in BID VS configuration with a built-in, steplessly variable-speed drive. Circulates water/glycol mixture in heating or cooling systems on boats, buses, motorhomes and other commercial vehicles. Small size with high efficiency, maintenance-free, ceramic shaft and carbon fiber sleeve, completely water proof (IP68).

• Port Size 20 mm (3/4")
• Capacity at 0.1 bar: 32 l/min, at 0.25 bar: 28 l/min
• Max. load current 4.5 A, Max Power consumption 54 W
• Weight 0.48 kg
• Motor: Brushless magnetic isolated design with built-in variable-speed drive (BID VS)
• Continuous Duty, Life span ≥30,000 hours
• Materials: ABS, PES/SPS/PA66
• Motor IP Classification IP68, Noise class 35 dB
• Max. Liquid Temp.: Continuous Duty +60°C, Intermittent +80°C
